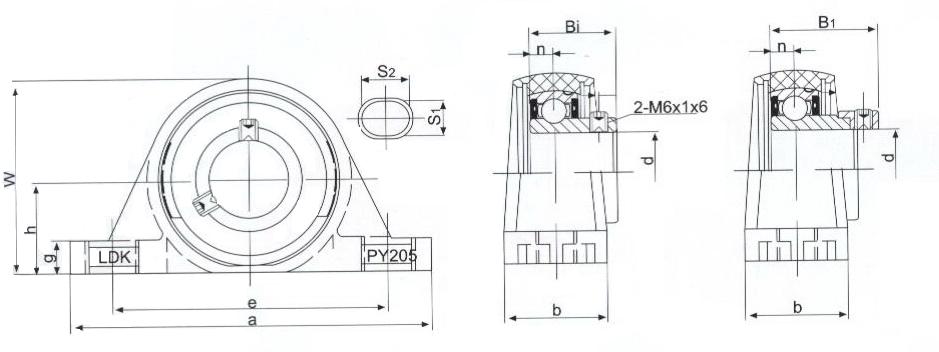

| Unit No. | Shaft Dia d (mm) |
Dimensions (mm) | Bolt Size mm | Housing No. | Bearings No. | ||||||||||
| h | a | e | b | S1 | S2 | g | w | B1 | Bi | n | |||||
| SBPY205-16 | 1″ | 29 | 114 | 87 | 32 | 11 | 15 | 10 | 61 | – | 27 | 7.5 | 3/8 | PY205 | SB205-16 |
| SSBPY205-16 | 1″ | 29 | 114 | 87 | 32 | 11 | 15 | 10 | 61 | – | 27 | 7.5 | 3/8 | PY205 | SSB205-16 |
| SAPY205-16 | 1″ | 29 | 114 | 87 | 32 | 11 | 15 | 10 | 61 | 31.5 | – | 7.5 | 3/8 | PY205 | SA205-16 |
| SSAPY205-06 | 1″ | 29 | 114 | 87 | 32 | 11 | 15 | 10 | 61 | 31.5 | – | 7.5 | 3/8 | PY205 | SSA205-16 |
