TP-SUCFB200 Series

You Are Here: Home / Thermoplastic Stainless and thermoplastics. / TP-SUCFB200 Series
Placeholder
/

REQUEST MORE INFO

Category: .

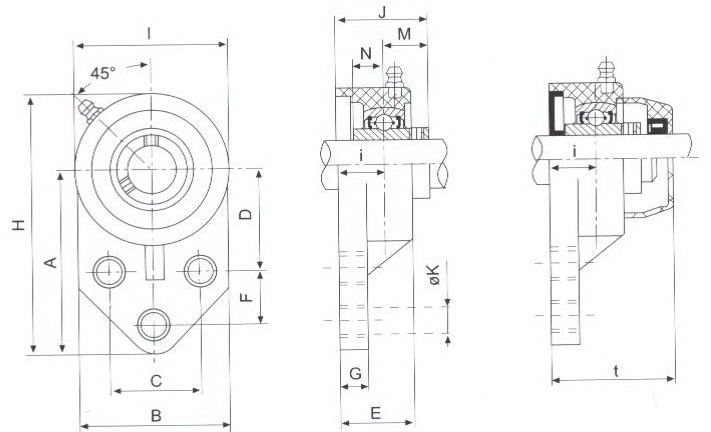

Unit No. Shaft Dia Dimensions (mm) Bolt Size mm Housing No. Bearings No. Weight
kg
d
(in) (mm) A B C D E F G H I J K M N
TP-SUCFB201 12 76.2 62 38.1 42.9 31.2 22.2 11.4 108 63.5 38 10.7 18.3 12.7 M10 TP-FB201 SUC201 0.28
TP-SUCFB201-8 1/2 SUC201-8
TP-SUCFB202-9 9/16 SUC202-9
TP-SUCFB202 15 76.2 62 38.1 42.90 31.2 22.2 11.4 108 63.5 38 10.7 18.3 12.7 M10 TP-FB202 SUC202 0.26
TP-SUCFB202-10 5/8 SUC202-10
TP-SUCFB203 17 76.2 62 38.1 42.90 31.2 22.2 11.4 108 63.5 38 10.7 18.3 12.7 M10 TP-FB203 SUC203 0.25
TP-SUCFB203-11 11/16 SUC203-11
TP-SUCFB204-12 3/4 76.2 62 38.1 42.9 31.2 22.2 11.4 108 63.5 38 10.7 18.3 12.7 M10 TP-FB204 SUC204-12 0.25
TP-SUCFB204 20 SUC204
TP-SUCFB205-14 7/8 85.7 SUC205-14 0.30
TP-SUCFB205-15 15/16 63.5 41.3 46 32.8 28.6 11.4 120.6 70 41.1 10.7 19.8 14.3 M10 TP-FB205 SUC205-15
TP-SUCFB205 25 SUC205
TP-SUCFB205-16 1 SUC205-16
TP-SUCFB206-17 1-11/16 96.5 76 47.6 SUC206-17
TP-SUCFB206-18 1-1/8 SUC206-18
TP-SUCFB206 30 52.4 35.4 31.8 13.3 138.5 83 47.6 10.7 22.2 15.9 M10 TP-FB206 SUC206 0.46
TP-SUCFB206-19 1-3-16 SUC206-19
TP-SUCFB206-20 1-1/4 SUC206-20
TP-SUCFB207-20 1-1/4 SUC207-20

TP-SUCFB207-21

 1-5/16 SUC207-21
TP-SUCFB207-22 1-3/8 109.5 89 50.8 60.3 37.5 31.8 16.1 157 95 50.8 13.1 25.4 17.5 M12 TP-FB207 SUC207-22

0.66
TP-SUCFB207 SUC207
TP-SUCFB207-23 1-7/16 35 SUC207-23
TP-SUCFB208-24 1-1/2 SUC208-24
TP-SUCFB208-25 1-9/16 126.5 99 54 67.3 39.5 35.5 18.5 178 103 54 13.1 30.2

19

 M10 TP-FB208 SUC208-25

0.9
TP-SUCFB208 40 SUC208
