Category: Ball and Roller Bearings.

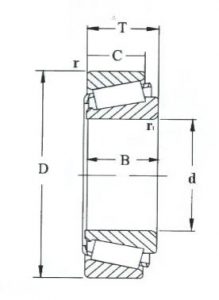

Principal dimenions (mm)					Weight Kg	Bearing Number
d	D	T	B	C	Weight Kg	Bearing Number
15	42	14.25	13	11.0	0.098	30302
17	40	13.25	12	11.0	0.79	30203
	47	15.25	14	12.0	0.134	30303
20	42	15.00	15	12.0	0.097	32004 X
	47	15.25	14	12.0	0.127	30204
	47	19.25	18	15.0	0.160	32204
	52	16.25	15	13.0	0.172	30304
	52	22.25	21	18.0	0.241	32304
25	47	15.00	15	11.5	0.116	32005 X
	52	16.25	15	13.0	0.157	30205
	52	19.25	18	15.0	0.187	32205
	52	22.00	22	18.0	0.221	33205
	62	18.25	17	15.0	0.270	30305
	62	25.25	24	20.0	0.376	32305
30	55	17.00	17	13.0	0.172	32006 X
	62	17.25	16	14.0	0.238	30206
	62	21.25	20	17.0	0.297	32206
	62	25.00	25	19.5	0.355	33206
	72	20.75	19	16.0	0.403	30306
	72	28.75	27	23.0	0.570	32306
35	62	18.00	18	14.0	0.230	32007 X
	72	18.25	17	15.0	0.340	30207
	72	24.25	23	1.0	0.456	32207
	72	28.00	28	22.0	0.540	33207
	80	22.75	21	18.0	0.538	30307
	80	32.75	31	25.0	0.765	32307

Principal dimenions (mm)					Weight Kg	Bearing Number
d	D	T	B	C	Weight Kg	Bearing Number
40	68	19.00	19	14.50	0.280	32008 X
	68	22.00	22	18.00	0.322	33008
	80	19.75	18	16.00	0.438	30208
	80	24.75	23	19.00	0.549	32208
	80	32.00	32	25.00	0.744	33208
	90	25.25	23	20.00	0.758	30308
	90	32.25	33	27.00	1.050	32308
45	75	20.00	20	15.50	0.354	32009 X
	75	24.00	24	19.00	0.414	33009
	80	26.00	26	20.50	0.552	33109
	85	20.75	19	16.00	0.488	30209
	85	24.75	23	19.00	0.602	32209
	85	32.00	32	25.00	0.817	33209
	100	27.25	25	22.00	1.010	30309
	100	38.25	36	30.00	1.420	32309
50	80	20.00	20	15.50	0.380	32010 X
	80	24.00	24	19.00	0.452	33101
	85	26.00	26	20.00	0.597	33110
	90	21.75	20	17.00	0.558	30210
	90	24.75	23	19.00	0.644	32210
	90	32.00	32	24.50	0.876	33210
	110	29.25	27	23.00	1.280	30310
	110	42.25	40	33.00	1.880	32310
55	90	23.00	23	17.50	0.568	32011 X
	90	27.00	27	21.00	0.657	33011
	95	30.00	30	23.00	0.877	33111
	100	22.75	21	18.00	0.736	30211
	100	26.75	25	21.00	0.860	32211
	100	35.00	35	27.00	1.180	33211
	120	31.50	29	25.00	1.630	30311
	120	45.50	43	35.00	2.390	32311
